Architecture en pipeline : schémas

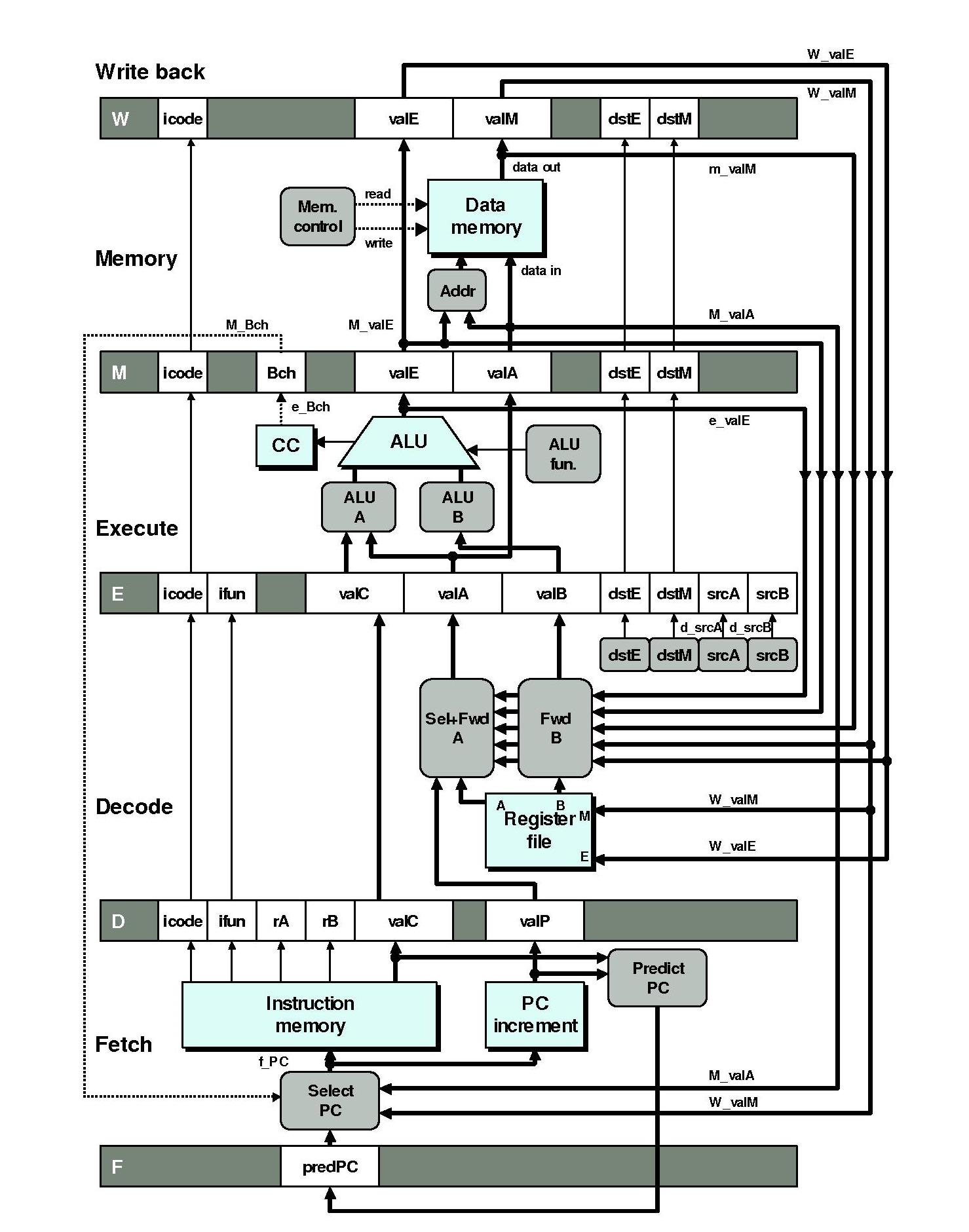

Structure générale
Conventions de notation
- new_E_valA : valeur valA qui sera enregistrée dans le registre E au prochain top d'horloge (et donc calculé par l'étage Decode).
- E_valA : valeur valA actuellement enregistrée dans le registre E (et donc disponible pour l'étage Execute).
- e_valE : valeur valE calculée par l'étage Execute.

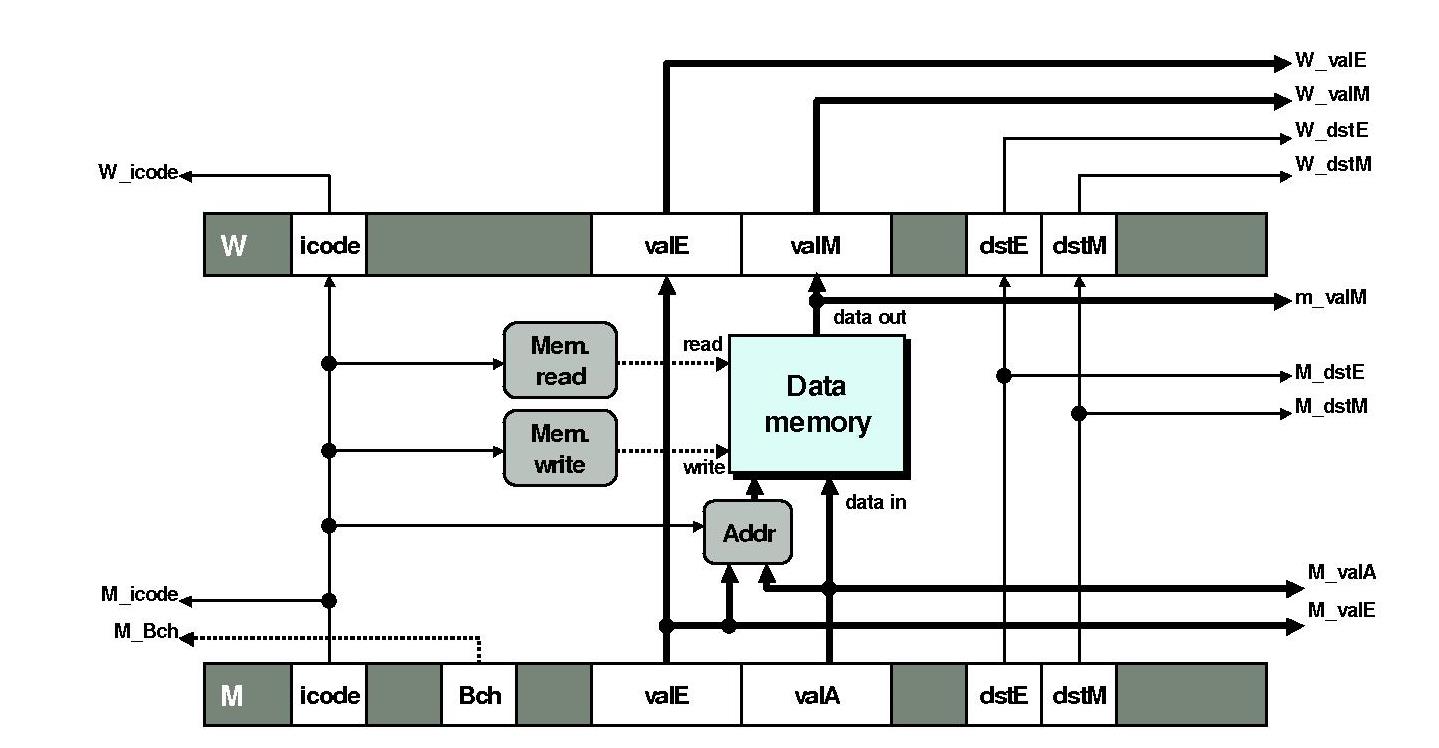

Étage Memory

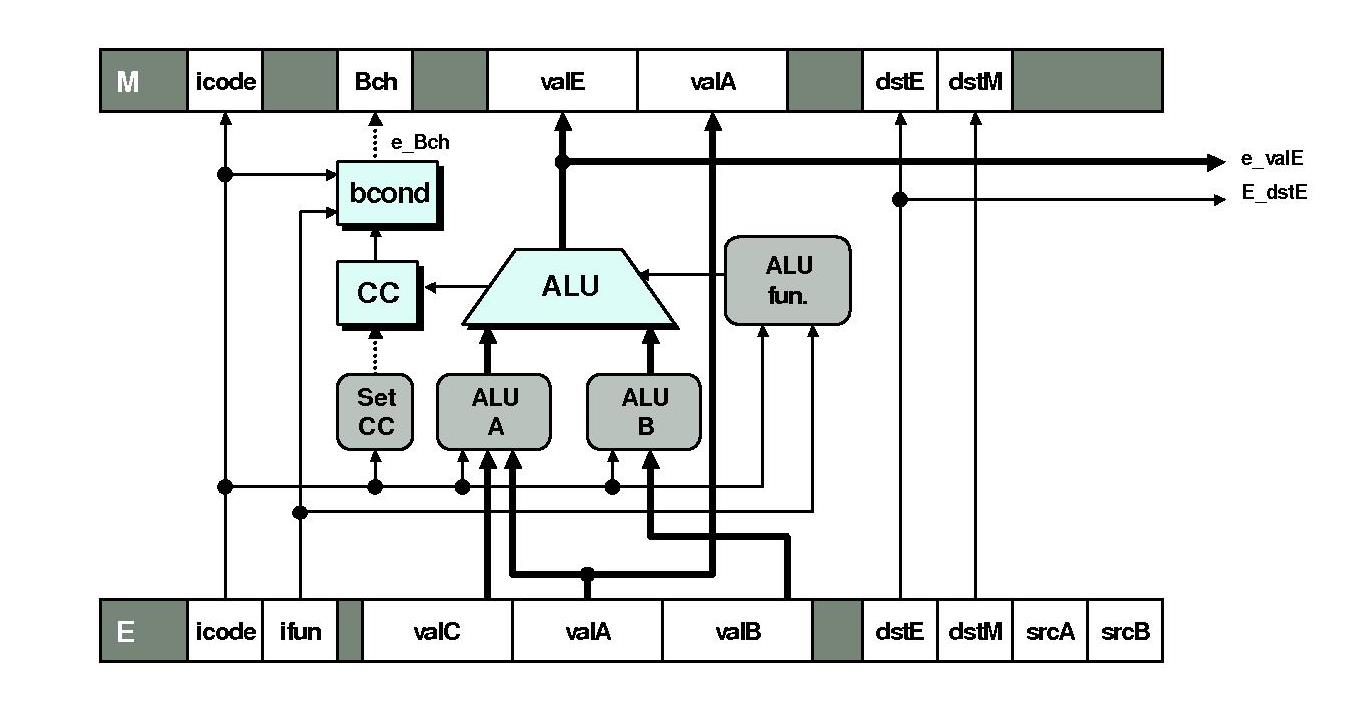

Étage Execute
# Should I stall or inject a bubble into Pipeline Register E?
# At most one of these can be true.
bool E_stall = 0;
bool E_bubble =
# Mispredicted branch
(E_icode == JXX && !e_Bch) ||
# Conditions for a load/use hazard
E_dstM in { d_srcA, d_srcB};

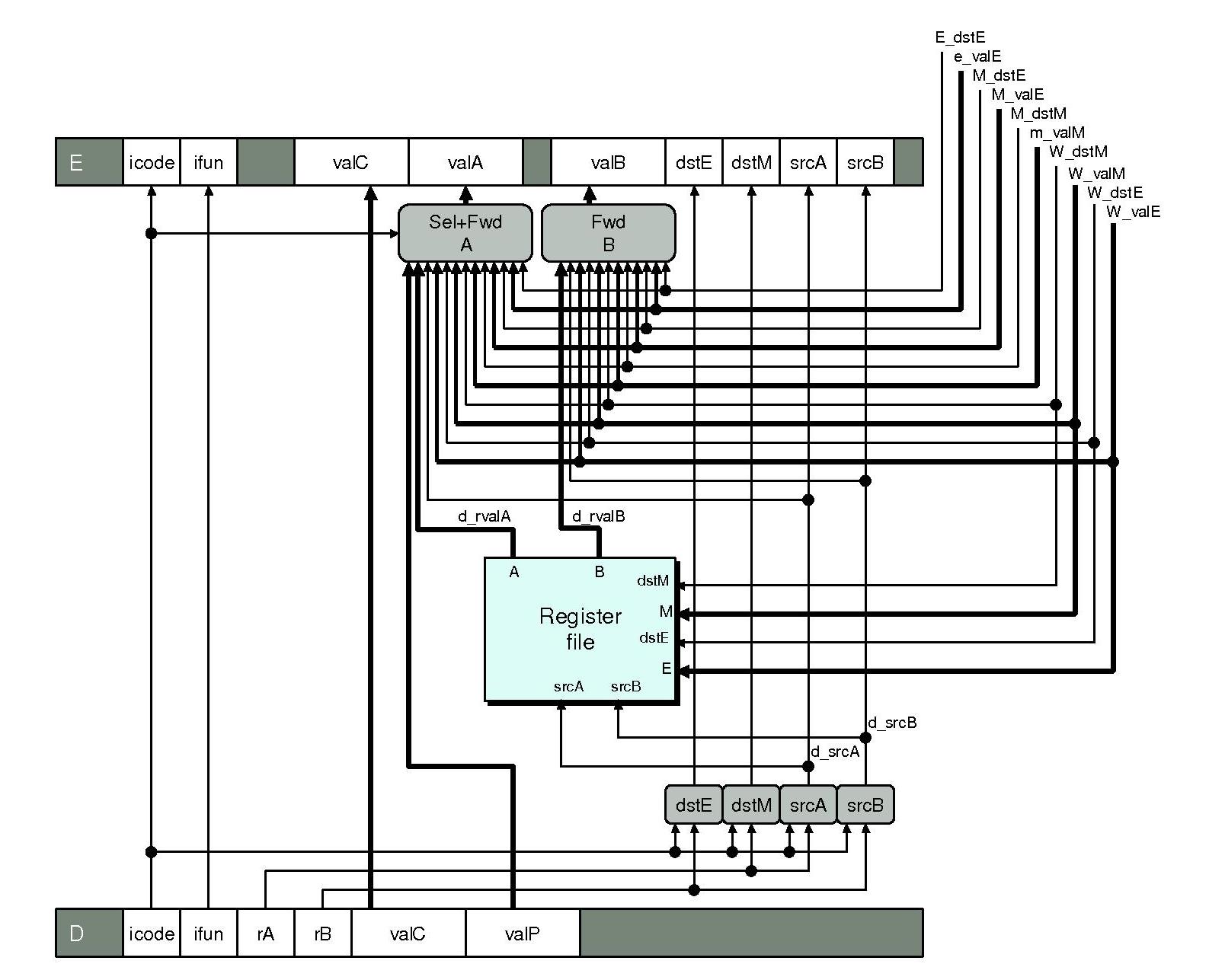

Étage Decode
int new_E_valA = [
D_icode in { CALL, JXX } : D_valP; # Use incremented PC
d_srcA == E_dstE : e_valE; # Forward valE from execute
d_srcA == M_dstM : m_valM; # Forward valM from memory
d_srcA == M_dstE : M_valE; # Forward valE from memory
d_srcA == W_dstM : W_valM; # Forward valM from write back
d_srcA == W_dstE : W_valE; # Forward valE from write back
1 : d_rvalA; # Use value read from register file
];
int new_E_valB = [
d_srcB == E_dstE : e_valE; # Forward valE from execute
d_srcB == M_dstM : m_valM; # Forward valM from memory
d_srcB == M_dstE : M_valE; # Forward valE from memory
d_srcB == W_dstM : W_valM; # Forward valM from write back
d_srcB == W_dstE : W_valE; # Forward valE from write back
1 : d_rvalB; # Use value read from register file
];
# Should I stall or inject a bubble into Pipeline Register D?
# At most one of these can be true.
bool D_stall =
# Conditions for a load/use hazard
E_dstM in { d_srcA, d_srcB };
bool D_bubble =
# Mispredicted branch
(E_icode == JXX && !e_Bch) ||
# Stalling at fetch while ret passes through pipeline
# but not condition for a load/use hazard
! E_dstM in { d_srcA, d_srcB } && RET in { D_icode, E_icode, M_icode };

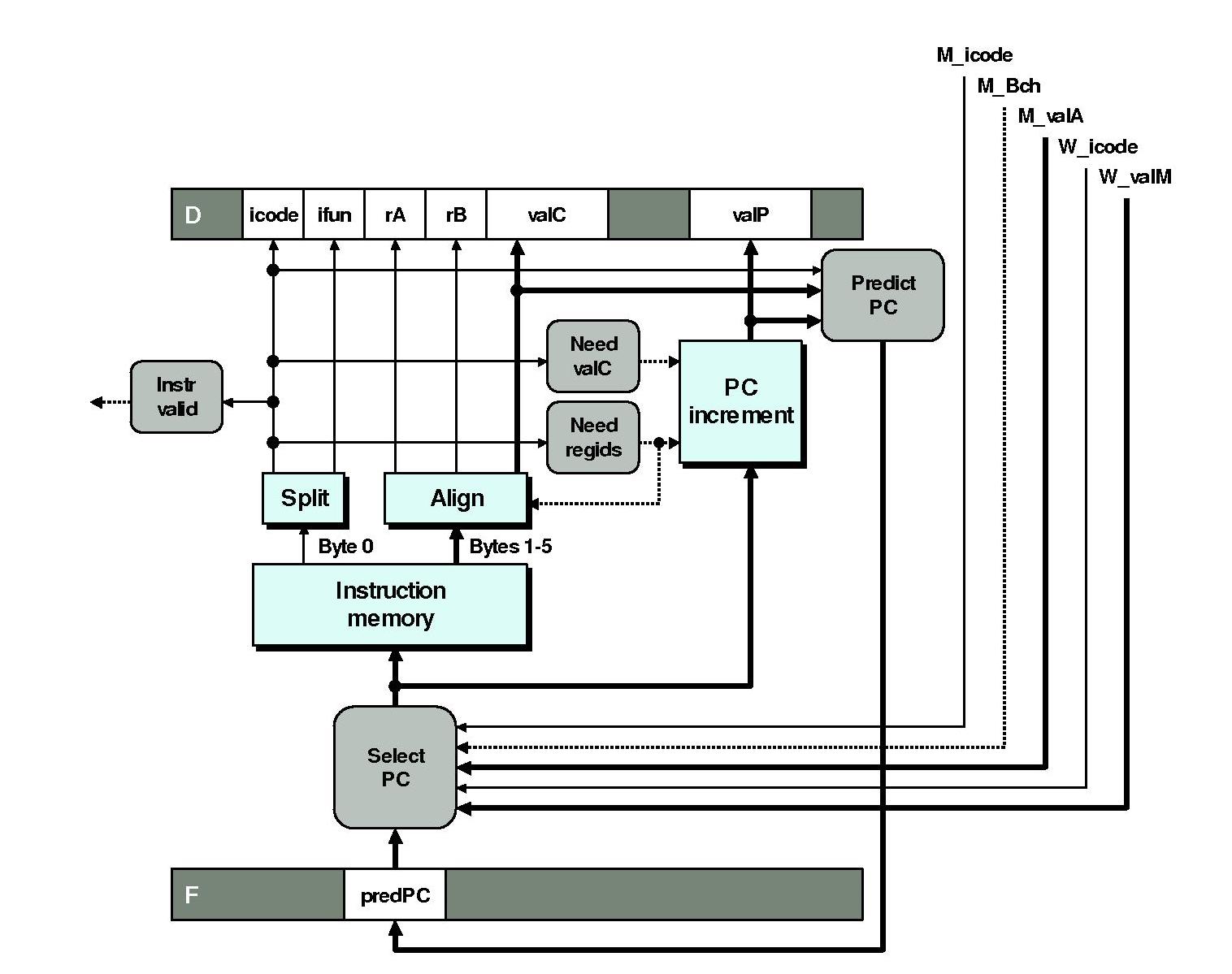

Étage Fetch
## What address should instruction be fetched at
int f_pc = [
# Mispredicted branch. Fetch at incremented PC
M_icode == JXX && !M_Bch : M_valA;
# Completion of RET instruction.
W_icode == RET : W_valM;
# Default: Use predicted value of PC
1 : F_predPC;
];
# Predict next value of PC
int new_F_predPC = [
f_icode in { JXX, CALL } : f_valC;
1 : f_valP;
];
# Should I stall or inject a bubble into Pipeline Register F?
# At most one of these can be true.
bool F_bubble = 0;
bool F_stall =
# Conditions for a load/use hazard
E_dstM in { d_srcA, d_srcB } ||
# Stalling at fetch while ret passes through pipeline
RET in { D_icode, E_icode, M_icode };
